$12.99
Turnout Control Servo Kit with Bracket and Micro Switches
Description

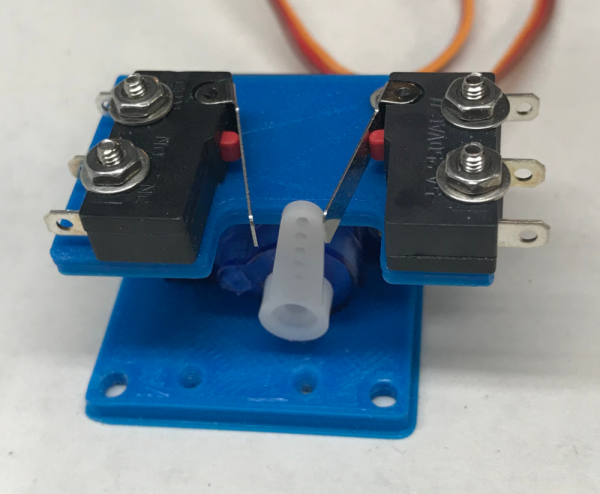

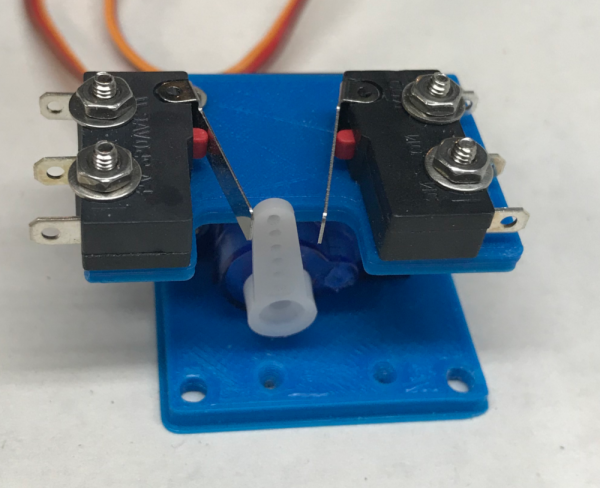

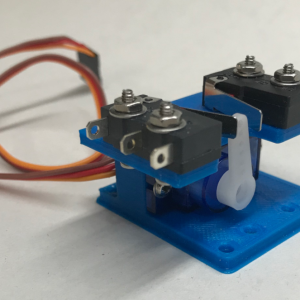

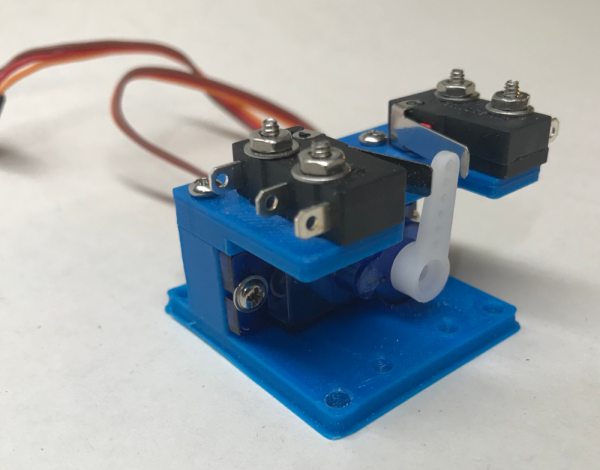

Turnout Control Servo Kit with Bracket and Micro Switches
This is a kit and requires assembly! The kit contains all components to create a single turnout mechanism with all the abilities of a Tortoise switch machine.
NOTE: The bracket is printed in PLA (Polylactic Acid). PLA is biodegradable and is not meant for use in direct sunlight or very hot conditions.

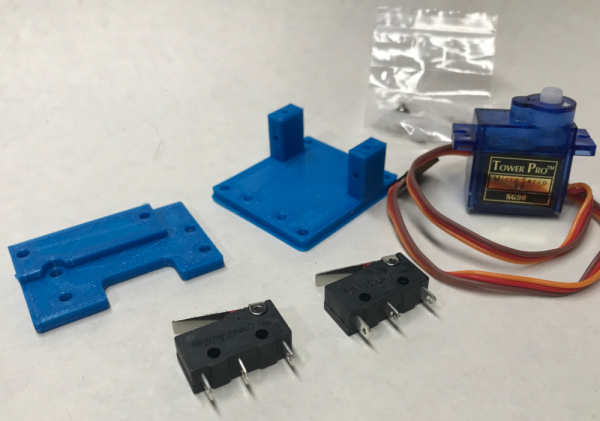

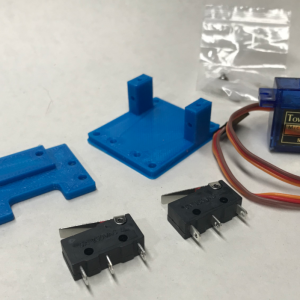

This kit includes:
- SG90 Servo

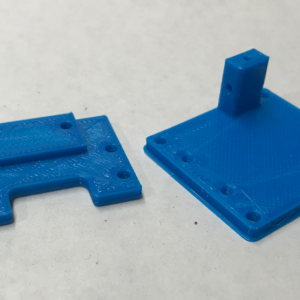

- 3D Printed (PLA) Mounting Bracket (select Right or Left)
- Two Sub Micro Limit Switch Lever Arm SPDT 3 Terminal Momentary Switches
- Screws, nuts and washers
- Assembly Instructions
- Installation Instructions
This kit is available assembled.
NOTE: This kit does not include a servo driver board. All servos require a servo driver board to operate. See the article Turnout Control with Servos – Part II for more information and recommended driver boards.
Additional information
| Orientation | Left, Right |
|---|
I am trying to acquire your “Servo mounting Bracket” (Bracket only) 10 packs, by means of payment by PayPal but it does not specify the means of transport or its amount, and not if they ship outside your country.
International shipping is not supported by the on-line ordering system. I will prepare a quotation with shipping for you.
I await your budget, thank you.
I don’t understand the need for left or right orientation, is this just for under table space saving?
The orientation has to do with which way the servo lays in the bracket. The S90 servo has an offset gear and the brackets are designed for laying the servo to the left or to the right. In function, the orientation does not really matter, but if you have an area with tight clearances this may make a difference.
Thanks for clearing that up I was curious too
